If you run a school cafeteria, a hotel banquet kitchen, or a hospital, and you don’t have a Tilt Skillet, you are wasting labor. Also known as a Braising Pan, this rectangular stainless steel tub is the most versatile piece of equipment in the industry.
It is a:
- Griddle (for 500 pancakes).
- Fryer (for shallow frying chicken schnitzel).
- Kettle (for 30 gallons of chili).
- Steamer (with a perforated insert).
- Braiser (for short ribs).
Leading manufacturers like Cleveland Range urge operators to use the power tilt feature not just for convenience, but as a primary safety protocol to prevent burns.
In this guide, I will explain why the Power Tilt feature is worth the extra $1,000, and how to stop your staff from warping the bottom plate.
1. The Physics: Clad Plate vs. Stainless
You are cooking on a massive surface (usually 30-40 gallons). Even heat distribution is critical.
The “Clad” Bottom (The Standard)
- Construction: A thick plate of Aluminum (excellent heat conductor) is sandwiched between two sheets of Stainless Steel.
- Why: Stainless steel is a terrible conductor. If you just had stainless, you would get “Hot Spots” above the burners. The food would burn in lines.
- The Aluminum Core: Spreads the heat laterally. This means the corner of the skillet is just as hot as the center.
- Result: You can sear 50 steaks at once, and they will all have the same browning.
2. Manual Tilt vs. Power Tilt (The Workmen’s Comp Math)
How do you get 30 gallons of boiling tomato sauce out of the pan? You tilt it.
Manual Tilt (The Hand Crank)
- Mechanism: A large wheel that you turn by hand.
- Effort: It takes ~25 turns to fully dump the pan.
- The Problem: It is slow. And if the pan is full (300 lbs of food), it offers resistance. A cook has to hunch over and crank.
- Injury Risk: Low, but repetitive strain is real.
Power Tilt (The Electric Button)
- Mechanism: An electric motor drives the gear. You hold a switch.
- Speed: Smooth, consistent pouring.
- The Value:
- Precision: You can tilt it exactly 5 degrees to pour sauce into a hotel pan without splashing.
- Safety: The cook stands back. Zero physical effort.
- ROI: The breakdown of a Power Tilt motor in 10 years is likely ($500 repair). The breakdown of a cook’s back in 10 years is guaranteed ($50,000 claim). Buy the Power Tilt.
3. Gas vs. Electric: Recovery Time
Gas (The Heavyweight)
- BTUs: Massive output (e.g., 90,000 BTU).
- Recovery: When you drop 50 frozen burger patties, the pan temp drops. Gas recovers almost instantly.
- Utility Cost: Generally cheaper to run in most cities.
- Infrastructure: Requires a gas line and a Type 1 Hood.
Electric (The Precise One)
- Heating: Elements embedded in the bottom block.
- Efficiency: 100% of heat goes into the food (Gas wastes 40% up the flue).
- Consistency: Better for low-temp simmering (soups that might scorch on gas).
- Infrastructure: Requires massive amperage (3-Phase, 208V/240V). Check your panel before buying!
4. Sizing Guide: 30 vs. 40 Gallon
- 30 Gallon: The standard footprint (approx 36” wide). Fits in most lines.
- Capacity: 350 servings of soup (4oz).
- 40 Gallon: Wider (48”).
- Capacity: 475 servings.
- Chef Tip: Buy the biggest one that fits under your hood. You can always cook 20 gallons in a 40-gallon pan. You cannot cook 40 gallons in a 30-gallon pan.
5. Maintenance: The “Boil Out” & The Warpage
The Tilt Skillet is indestructible, EXCEPT for one thing: Thermal Shock.
How to kill a $15,000 machine:
- finish searing steaks at 400°F.
- Immediately dump a bucket of Ice Water into the hot dry pan to clean it.
- WARP. The steel plate buckles.
- Result: The pan is no longer flat. Oil pools in the corners. The lid won’t seal tight. You ruined it.
The Correct Cleaning Protocol:
- Cool Down: Let it drop to 200°F.
- Warm Water: Add warm water and detergent.
- Simmer: Turn the heat to “Low” and let it simmer (Boil Out) for 10 minutes to loosen the grease.
- Scrub: Use a non-abrasive pad.
- Tilt: Dump the dirty water into the floor trough (Note: You MUST have a floor drain directly in front of a tilt skillet).
6. Accessories Comparison
- Tangent Draw-Off Valve: A faucet at the bottom of the pan.
- Why: Allows you to drain liquid (stock) without tilting the pan. Great for separating fat. Use a mesh strainer bucket.
- Pan Carrier Support: A bracket that holds a hotel pan right under the lip.
- Why: One-person operation. You don’t need a second person to hold the pan while you pour.
Top 3 Commercial Tilt Skillet Recommendations
You can cook 500 meals in one hour with these.

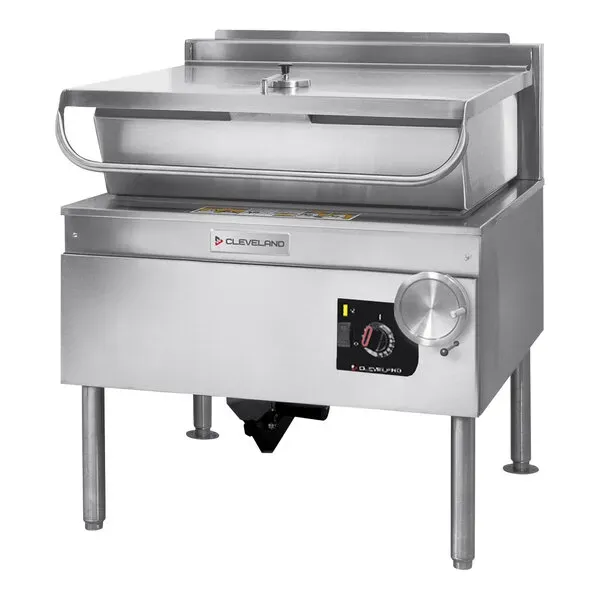

1. Best Overall (The Workhorse): Cleveland DuraPan Series (SGL-30-TR)
- Best For: Schools, Correctional Facilities, Banquets.
- Why It Wins: The heating system is designed for massive thermal recovery. The “Splash Proof” controls are recessed so they don’t get smashed by carts.
- Durability: The stainless steel plate is reinforced to prevent warping even under thermal shock.
2. Best Efficiency (The Fast Boiler): Vulcan V-Series
- Best For: High volume soup/sauce production.
- Why It Wins: Features “FastBatch” technology that transfers heat 20% more efficiently to liquid, often qualifying for Energy Star rebates.
- Design: The coved (rounded) corners make it the easiest pan to clean in the industry.

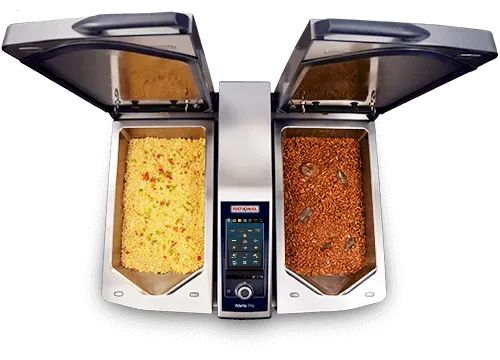

3. Best Luxury (The Robot): Rational iVario Pro
- Best For: Hotels and Tech Cafeterias with budget.
- Why It Wins: It isn’t just a skillet; it’s a computer. It has two independent zones. You can boil pasta on the left and sear steaks on the right simultaneously.
- Labor Saver: The “AutoLift” feature raises the pasta basket automatically when done.
Frequently Asked Questions (FAQ)
Q: Why did my tilt skillet bottom warp? A: Thermal Shock. Someone likely dumped ice water into a hot (400°F) dry pan. This buckles the steel plate instantly. Always cool to 200°F before cleaning.
Q: What is the advantage of Power Tilt? A: It allows precise pouring (without splashing) and prevents back injuries from hand-cranking a 300lb load of food.
Q: Do I need a floor drain? A: Yes. You must have a floor trough directly in front of the unit to dump the cleaning water, or you will flood the kitchen.
Final Summary
If you are feeding an Army, buy Cleveland. If you are running a Modern Hotel, buy Rational iVario.
