If a customer can’t see it, they won’t buy it. A Glass Door Merchandiser (GDM) exists for one reason: Impulse Buys. You are in line to pay for your sandwich. You see a glowing, ice-cold Coke. You crave it. You buy it. You are in line to pay for your sandwich. You see a glowing, ice-cold Coke. You crave it. You buy it. That is $2.50 revenue for a $0.40 product. High margin.
According to ENERGY STAR®, certified commercial glass door merchandisers are 20% more energy efficient than standard models, which matters when they run 24/7.
But these machines run 24/7 in hot lobbies. They work harder than any other fridge. In this guide, I will explain the Thermodynamics of Compressors, why “Foggy Glass” kills sales, and how to spot a “Planned Obsolescence” unit.
1. Thermodynamics: Top Mount vs. Bottom Mount
Where is the engine? This determines the lifespan of the machine.
Bottom Mount (The Standard)
- Physics: The compressor is near the floor.
- Pros:
- Serviceability: You can unscrew the panel and clean the coils without a ladder.
- Storage: The bottom shelf is raised (no bending down for the customer).
- The Problem: Dust and Grease. The floor is dirty. The condenser fan sucks in dust bunnies and mop water.
- Maintenance: You MUST vacuum the coil every month.
- Heat: Heat rises. The compressor heat rises into the cabinet (inefficient), causing the fridge to work harder? Actually, modern units exhaust out the front.
Top Mount (The Industrial Grade)
- Physics: The compressor is on the roof.
- Pros:
- Cleaner Air: Less dust near the ceiling.
- Heat: Heat rises away from the cold zone.
- Capacity: The interior floor is lower, giving you more storage space.
- Cons: Hard to service (Need a ladder).
- Verdict: Better for hot kitchens. Merchandisers are usually Bottom Mount for aesthetic reasons (The big lit sign is on top).
2. The “Foggy Glass” Killer
If your glass is foggy, nobody buys the drink. Fog is Condensation (Warm humid air hitting cold glass).
The Tech:
- Double Pane Glass: Air gap insulation.
- Heated Glass / Frames: High-end units (True Manufacturing) have tiny heater wires in the door frame.
- Why: Keeps the glass temp above the Dew Point.
- Result: Crystal clear glass even in 90% humidity.
- Low-E Coating: Reflects UV light (heat) out.
The Test: Touch the glass. If it is wet? Your door gasket is leaking or the heater wire is dead.
3. Lighting: LED vs. Fluorescent
This is not about energy saving. This is about Psychology.
- Fluorescent (Old): Yellow/Green tint. Flickers. Makes salad look wilted.
- LED (New): Bright White (5000K).
- The “Color Rendering Index” (CRI): High CRI LEDs make red Coke cans look RED. It triggers the brain’s reward center.
- ROI Data: Switching from dim lights to bright LEDs increases impulse sales by 15-20%.
- Heat: LEDs produce zero heat. Fluorescents add heat to the cabinet.
4. Doors: Swing vs. Sliding
Swing Doors (Hinged)
- Seal: Rubber gasket creates an air-tight seal. Best energy efficiency.
- Self-Closing: Torsion bar closes the door automatically if the customer wanders off.
- Space: Needs aisle clearance to open.
Sliding Doors
- Space: Zero clearance needed. Perfect for narrow hallways.
- The Flaw: They never seal perfectly. Air leaks in the middle gap. The compressor runs 20% more.
- Maintenance: The rollers eventually jam with dirt.
- Verdict: Avoid unless you have zero space.
5. Maintenance: The “Coil Brush”
The #1 reason fridges die is a Clogged Condenser Coil. The fan sucks air through aluminum fins to release heat. If the fins are blocked by dust:
- Heat cannot escape.
- Head pressure rises.
- Compressor overheats.
- Click. The thermal overload trips.
- Eventually… Boom. $800 compressor replacement.
The Fix: Buy a $10 Coil Brush (long stiff bristles). Once a month, poke it into the grill and scrub. It takes 2 minutes. It saves $2,000.
Top 3 Commercial Merchandiser Recommendations
The goal is to sell, not just cool.
1. Best Overall (The Sales King): True Manufacturing GDM Series
- Best For: Convenience Stores, Soda Aisles.
- Why It Wins: The GDM-23 is the most recognizable fridge in the world. The LED lighting is perfectly calibrated to make labels pop.
- Resale: You can sell a 10-year-old True GDM for 50% of what you paid.

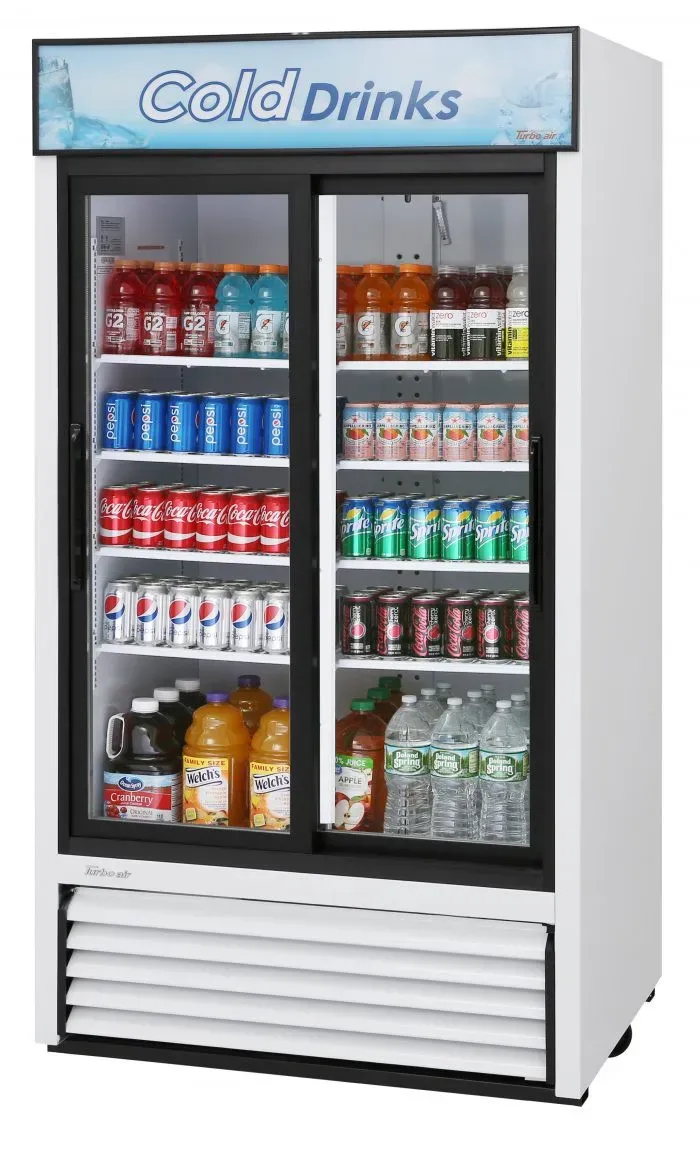

2. Best Maintenance (The Self-Cleaner): Turbo Air TGM Series
- Best For: Busy retail floors with no maintenance staff.
- Why It Wins: The self-cleaning condenser prevents the “dust bunny death” that kills most merchandisers.
- Efficiency: The “Turbo Cooling” feature drops the temp fast after a restocking.

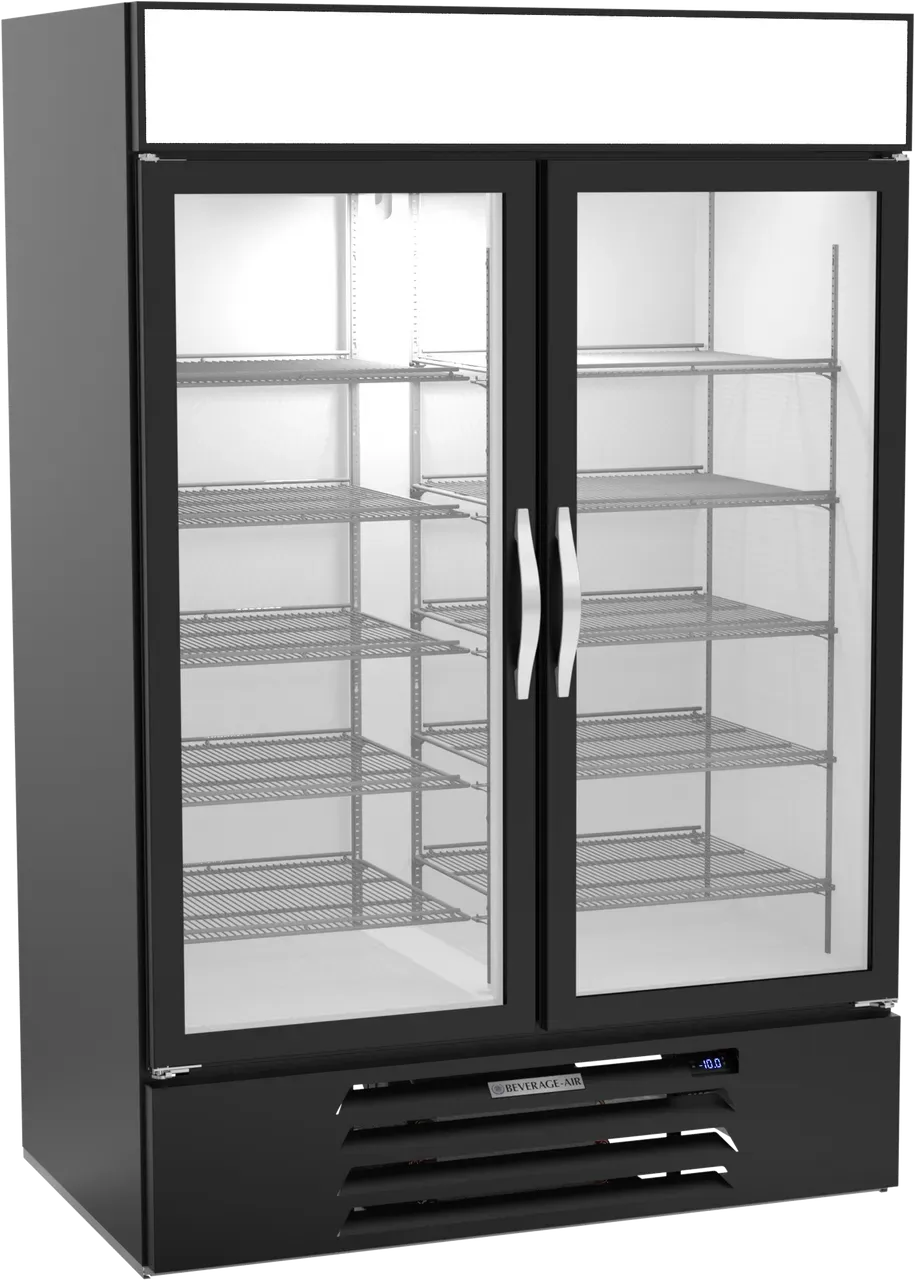

3. Best Versatility (The Retailer): Beverage-Air MarketMax
- Best For: Upscale Delis, Wine Shops.
- Why It Wins: Infinite shelving options. You can swap standard shelves for wine racks or gravity-feed organizers.
- Design: The blackout interior option creates a premium look for high-end beverages.
Frequently Asked Questions (FAQ)
Q: Why is the glass door on my fridge foggy? A: Fog is condensation (humidity). It usually means the door gasket is leaking, or the “Heater Wire” in the door frame (which keeps the glass warm) has failed.
Q: Do LED lights actually increase sales? A: Yes. High CRI (Color Rendering Index) LEDs make packaging colors pop. Data shows switching from dim fluorescents to bright LEDs increases impulse sales by 15-20%.
Q: Can I put a glass door fridge in front of a window? A: No. The sun creates a “Greenhouse Effect” inside the cabinet. The compressor will run 24/7 to fight the solar heat and will likely die within a year.
Final Summary
If you want Reliability, buy True. If you hate Cleaning, buy Turbo Air.
Chef Marco’s Rule: “Don’t put a merchandiser in front of a window. The sun hits the glass. The greenhouse effect boils the inside. The compressor runs 24/7 and dies in a year. Put it in the shade.”
